Prise SAE J1772 32A

Mouse over to zoom in

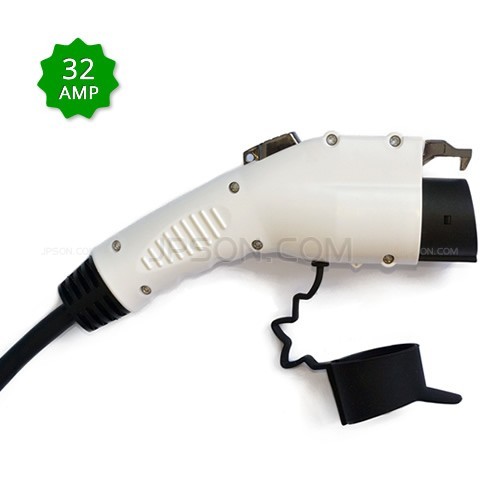

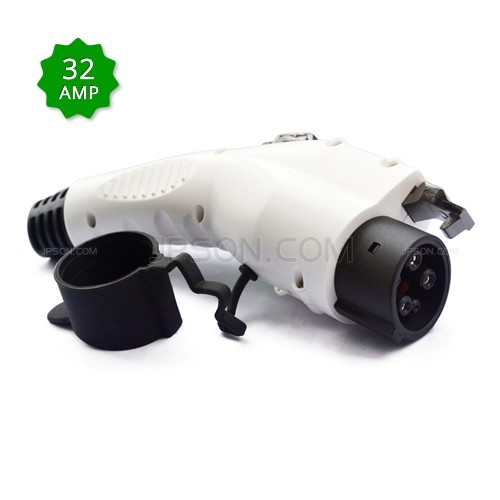

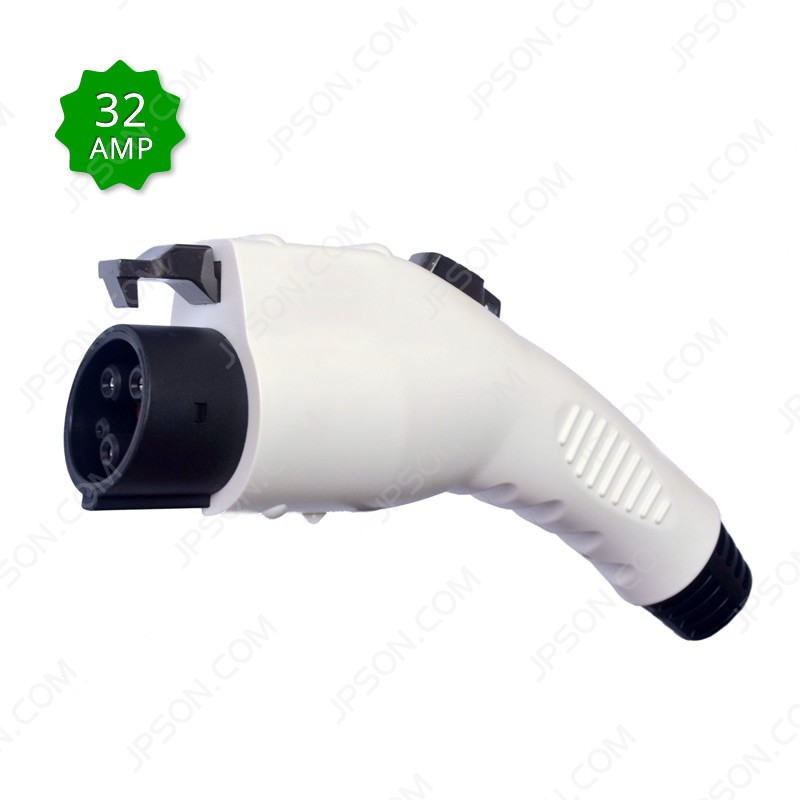

Prise/connecteur SAE J1772 32A pour recharge EV

Unit Price

US $69 / Piece

US $75

Cable Length
No Cable 3m Cable 5m Cable
Quantité
Only 3 left in stock
Frais d’expédition
Free Shipping to United States via Register Airmail

Ships within 1 business days, estimated delivery time days

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Spécifications

  • Rated Current: 32A
  • Rated Voltage: 120 ~ 240V AC
  • Standard: SAE J1772-2009
  • Certification: CE & UL

Aperçu

SAE J1772(Type1) Plug/Connector 32A Level2 for Electric Vehicle Charging with 0m,3m,5m Cord

Work for: Nissan LEAF, Prius, Volt, Chevrolet Volt, Tesla Model S and other Electric Cars.

Click to visit: J1772 Plug V2 32A, J1772 Plug 16A

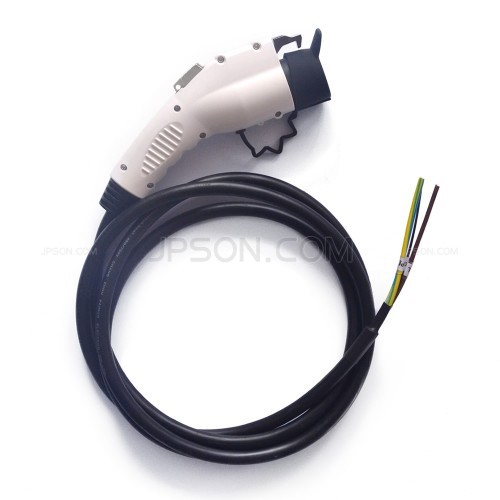

  • Cord length: Free End, 3m(9.8ft), 5m(16.4ft), Rubber cap included.
  • Meet SAE J1772 2009 (Type 1) North American standard, UL Rated.
  • Nice shape and easy to use, protection class IP54(in mated conditions).
  • Apply for most of American EV Cars, J1772 Adapter Box or Charger/Home Charging Station.

Parameters

  • Model: ;DSI-EV32P-NC, DSI-EV32P-3C, DSI-EV32P-5C
  • Rated current: 30A~32A
  • Working voltage: 120 ~ 240V AC
  • Cable Spec: TUV Rated 3*6mm2 + 2*0.5mm2
  • Insulation resistance: > 1000M Ω
  • Terminal temperature rise: <50K
  • Withstand voltage: 2000V
  • Contact impedance: 0.5m Ω Max
  • Vibration resistance: Meet JDQ 53.3 requirements
  • Working temperature: -30 ° C ~ + 50° C

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver or nickel plating
  • Sealing gasket: rubber or silicon rubber

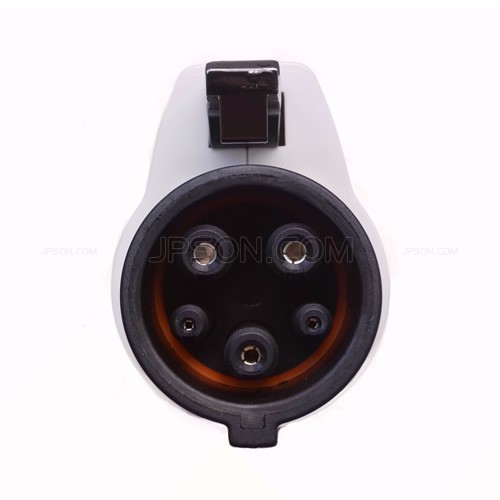

Insert Arrangements and functional definition

  • L1 -> Live wire
  • L2/N -> Neutral wire
  • Equipment Ground -> PE
  • Control Pilot -> Control Pilot
  • Proximity Detection -> Proximity Detection

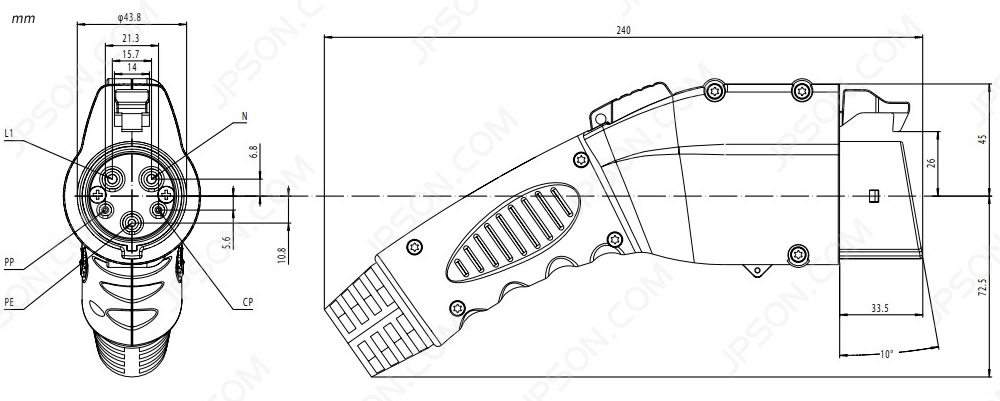

Structure Drawing

J1772 plug structure

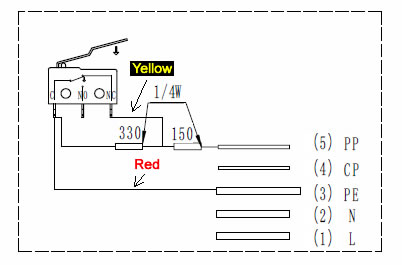

J1772 plug switch yellow red wires



Related Product: J1772 holster, J1772 Inlet, J1772 holder, J1772 Charger
