SP130 雙動板機噴漆控制噴槍

產品詳情

Description:

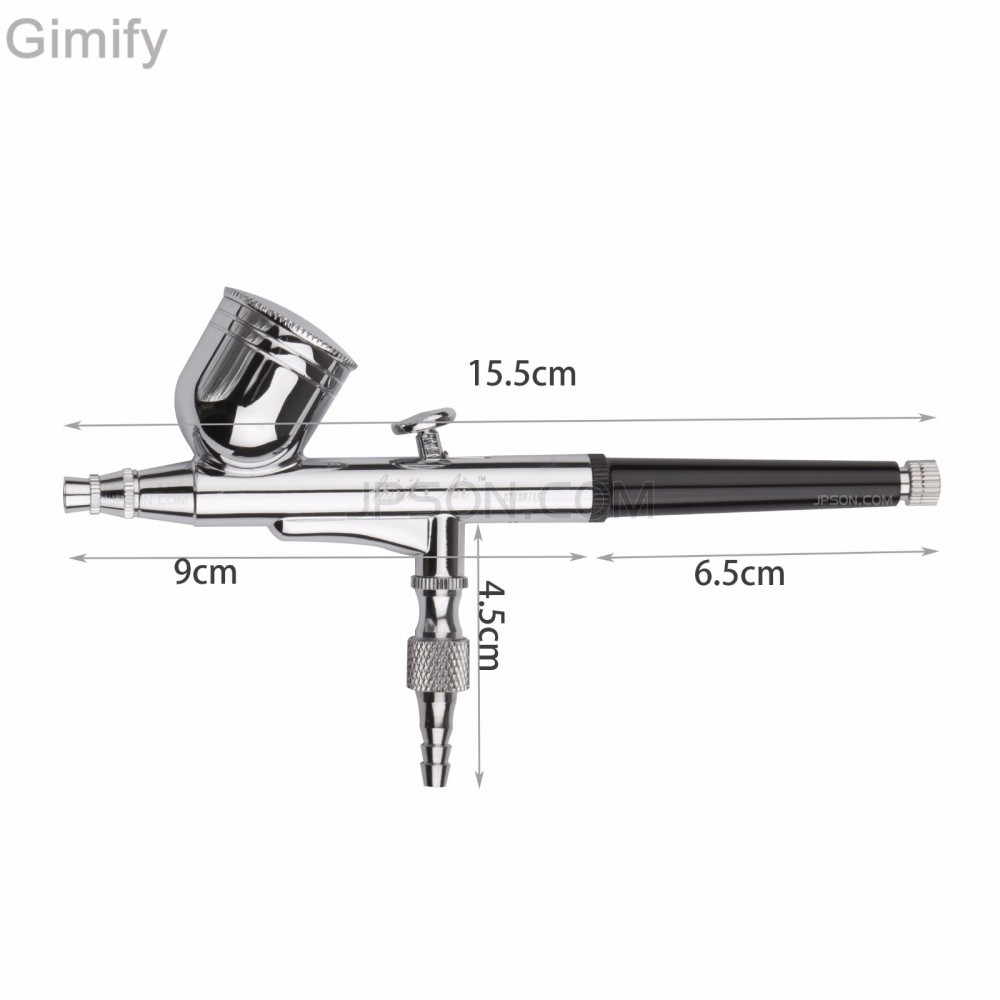

• SIZE：15.3cm*6.5cm
• COLOUR：Shank chrome plating，Tail handle black
• WEIGHT：160g
• MATERIAL：Copper

Key Features:

Versatile, designed for quick changes of custom mixed colors.

Dual action trigger controls both air and color (down for air, back for color), which allows the artist to change the width of the line and the capacity of paint.

Gravity feed works through the top-mounted color cup into the airbrush.

Perfect for model painting, body painting, nail arts, fine arts, car painting, photo retouching, cake decorating, textiles and T-shirt painting or some other paintings.

Product parameters

• Nozzle Dia：0.3
• Cup Capacity: 7cc
• Working Pressure:15-50psi
• N.W./G.W.: 111g/160g
• Double-action Trigger Air-paint Control

Before use to airbrush debugging to the best state, as follows:

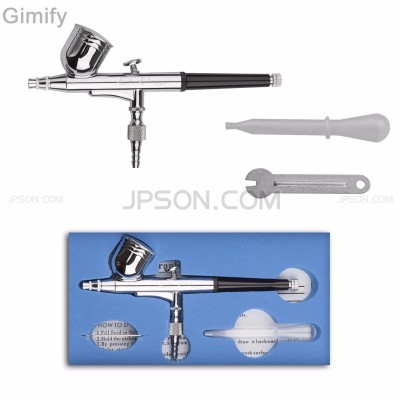

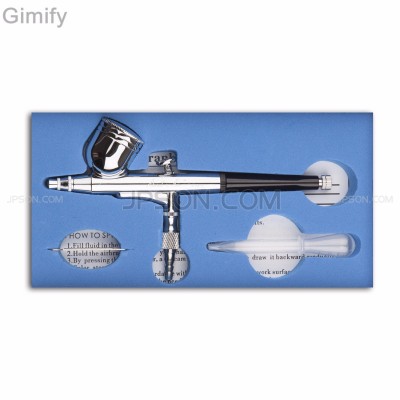

Package Includes:

• 1 x Airbrush
• 1 x Nozzle Wrench
• 1 x Eye Dropper
• 1 x Instruction

Kindly Note:

Please receive airbrush after debugging to the best state, and then use a clean water test, atomization is normal, you can use.

Please use the stability, if dropped on the ground, may affect the use effect, or damage.

After use, please clean the airbrush, avoid clogging, effect the next time you normally use.

In order to protect the item well, a professional person to change needle and nozzle will be recommend.

To prolong your airbrush gun’s life span, please clean your gun in a proper way:It will be better to clean with water thinner like Alcohol after water paint. oil paint should be cleaned with oil thinner like ethyl acetate.

Q&A:

1. Problems：Paint nozzle leak or abnormal condition of spray.

Possible reason:  The needle is bent or distorted

Solutions:  change accessories/parts

Possible reason:  Poor connection of nozzle and needle

Solutions: Open the Standard-Handle Adjusting, loosen the needle chucking net, then use the needle touch the nozzle back and forth; screw tightly the needle chucking net.

2. Problems：Could not spray or bad atomization

Possible reason:  nozzle clogged

Solutions:  clean the nozzle by solvent

Possible reason:  the needle chucking net is loose

Solutions: Open the Standard-Handle Adjusting, loosen the needle chucking net; pull out the needle and put it back,repeat this action a few times ;screw tightly the needle chucking net.

Possible reason:  operation button doesn't work

Solutions: Open the Standard-Handle Adjusting, loosen the needle chucking net; pull out the needle and put it back,repeat this action a few times ;screw tightly the needle chucking net.

APPLICATIONS

Commercial arts、illustrations、photo retouching、hobby and crafts.

HOW TO SPRAY

1、Fill fluid in the cup after thinning appropriately.

2、Hold the airbrush lightly in you hand.

3、By pressing the main lever,a stream of air emerges.Then draw it backward gradually for Color atomization.

4、The spray pattern is in accordance with the distance between a work surface and a air brush.

5、For fine line spray,remove the needle cover and hold the air brush near a work surface.



MAINTENANCE

1、Empty the fluid cup and wash with water or solvent by a brush.

2、Refill cup with water or solvent,then block the needle cover with a finger and spray.The air flows backward into nozzle to clean the paints remained the air brush.
