Câble 62196-2 vers J1772 (Type 2 vers Type 1) 32A Niveau 2 pour chargement EV
- Unit Price
-
US $178 / Piece
US $190
- Cable Length
- 3m Cable 5m Cable
-
Commodity was taken off shelves
-
Full Refund
Not receive your order
Items not as described
Secured by SSL
Pay by Paypal(credit card)
D’autres ont également acheté
J1772 Prise / Entrée 32A Niveau 2 pour Véhicule Electrique Charge EV
US $55
-
IEC 62196-2 Type 2 Female Socket/Outlet 16A 3 Point Fixing for EV Charging
US $75
-
62196-2 Type 2 Socket/Outlet Female 32A 3 Point Fixing for EV Charging
US $75
-
Support de fiche SAE J1772 / Dock / Dummy Socket
US $11
-
62196-2 Type 2 Lock(Interlocking Actuator) Model A
US $29
-
IEC 62196-2 Socket Lock(Interlocking Actuator) Model B
US $29
Spécifications
- Rated Current: 32A
- Standard: SAE J1772-2009
- Type: Type1 to Type2
Aperçu

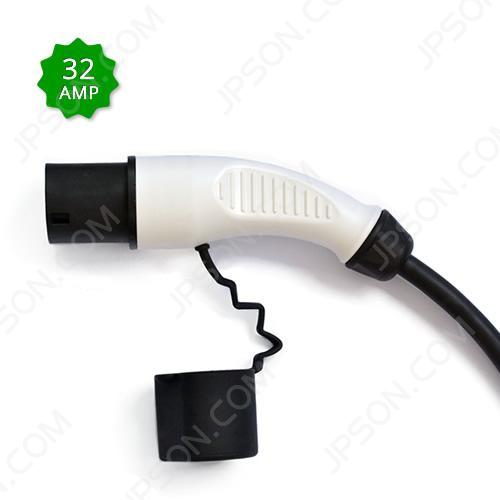

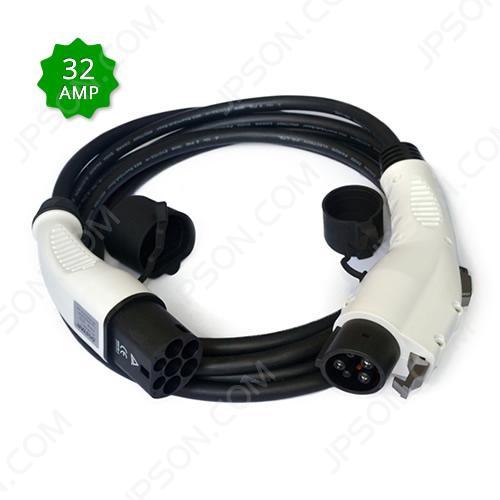

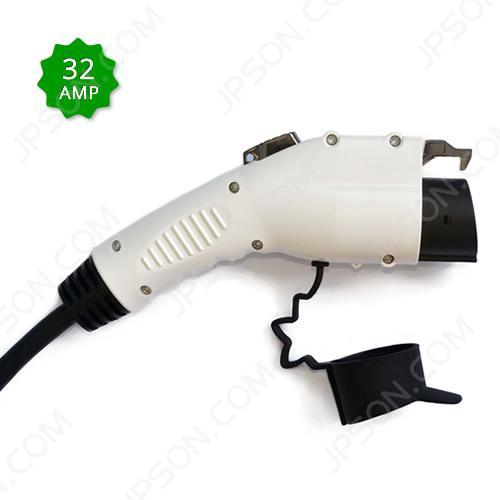

IEC 62196-2 to SAE J1772 (Type 2 to Type 1) Charging Cable/Adapter 32A Level2 for Electric Vehicle Charging
Click to visit: Type2 to Type1 Cable 16A
- Cord lenght: 3m(9.8 ft), 5m(16.4ft) or customized; Rubber cap included.
- Corld Color: Black, Orange or customized.
- Meet SAE J1772 2009 and IEC 62196-2 standards,UL Rated.
- Apply to EV Cars, Electric Buses Charging station
- Notes: All our EV charging connectors are custom-made, so it need wait manufacturing plant 3~ 10 days to make your products.
Apply to EV Car
Nissan Leaf, Chevrolet Volt, Citroen C-Zero, Fisker Karma, Ford Focus Electric, Ford C-Max Energi, Mia, Mia Electric Van,Mitsubishi-I Miev, Mitsubishi Outlander Phev, Nissan NV200 SE Van, Peugeot Ion, Renault Fluence,Renault Kangoo, Smiths Edison Van, Smiths Newton, Tata Indica Vista EV, Toyota Prius, Vauxhall Ampera...
Parameters
- Modle: DSI-DSIEC-EV32P-3C; DSI-DSIEC-EV32P-5C
- Rated Current: 30A~32A
- Operating Voltage: 120V ~ 240V AC
- Insulation resistance: > 1000M Ω
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5m Ω Max
- Vibration resistance: Meet JDQ 53.3 requirements
- Working temperature: -30 ° C ~ + 50° C
Materials
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver or nickel plating
- Sealing gasket: rubber or silicon rubber
- Cable Spec: TUV Rated 3*6.0mm2 + 2*0.5mm2
