Type 2 Socket Male 32A

Mouse over to zoom in

62196-2 Type 2 Socket/Inlet Male 32A for EV Charging

136 SalesSKU: #1044 Add to wish list
Unit Price

US $75 / Piece

US $98

Optional
32A Single Phase( No Lock) 32A Single Phase (Lock A) 32A Single Phase (Lock B) 32A Single Phase (Lock M) 32A 3-Phase( No Lock) 32A 3-Phase (Lock A) 32A 3-Phase (Lock B) 32A 3-Phase (Lock M)

Commodity was taken off shelves

Full Refund

Not receive your order

Refund or Keep

Items not as described

Secured by SSL

Pay by Paypal(credit card)

Other People Also Bought

Specifications

  • Rated Current: 32A
  • Model: DSIEC2e-EV32S

Overview

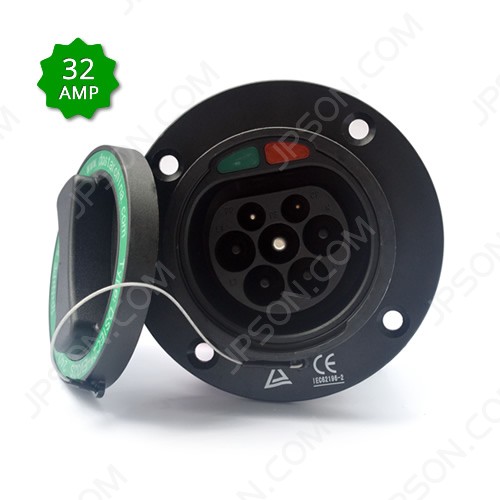

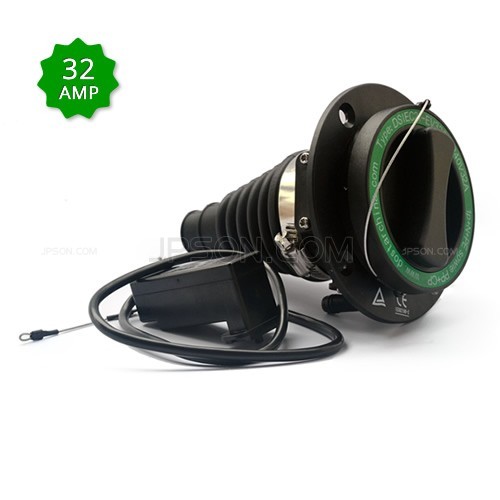

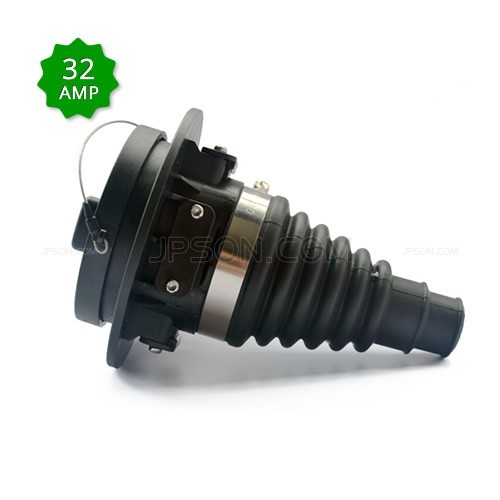

IEC 62196-2(Type 2) Socket/Inlet Male(EV Side) 32A with Lid, (Electromagnetic Lock optional)

>>>> We have 3 types of locks (https://www.jpson.com/search?query=Interlocking+Actuator)

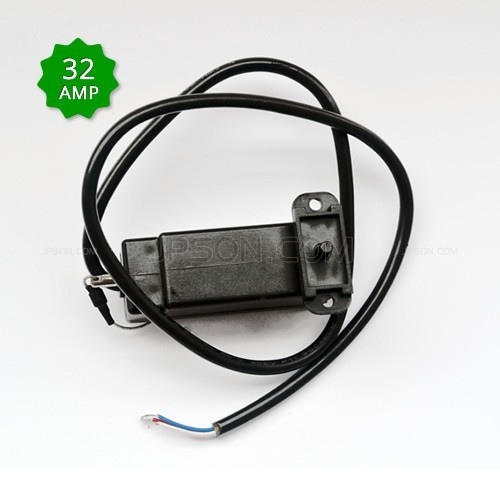

Electromagnetic Lock Selector:  Model A ,  Model B , Model M

Visit our: Type2  Male Socket 16A

  • Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
  • Nice shape and easy to use, protection class IP54(in mated conditions)

Parameters

  • Model: DSIEC2f-EV32S-NC
  • Rated cureent: 32A
  • Operation voltage: 240/415V AC
  • Insulation resistance: > 1000MΩ (DC500V)
  • Terminal temperature rise: < 50K
  • Withstand voltage: 2000V
  • Vibration resistance: Meet JDQ 53.3 requirments
  • Contact impedance: 0.5mΩ Max

Materials

  • Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
  • Contact Pin: Copper alloy, silver plating
  • Sealing gasket: rubber or silicon rubber

Dimensions

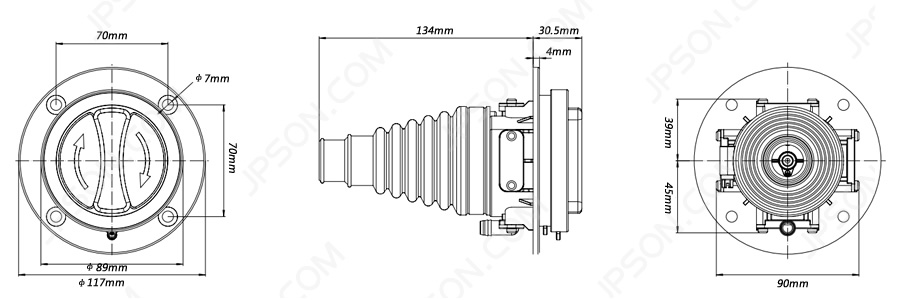

Type2 Male Socket CAD Drawing
