SP180K Double-action Trigger Air-paint Control Airbrush

Overview

Description:

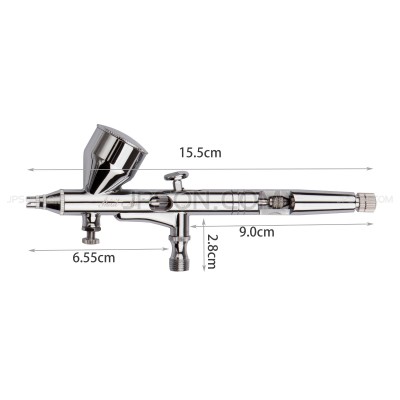

• SIZE：16cm*6.5cm
• COLOUR：Copper Plating
• WEIGHT：349g
• MATERIAL：Copper

Overview:

This multi-purposed and gravity feed dual action air brush allows you to control color and quantity of air with a finger as you want. It sprays an entire range of stipple effects from very fine to coarse textures. Perfect for airbrush, model, paint (car, bicycle, bike, etc.), airbrush tattoos, nail design and much more.

Double-action technology:

Control of the color and quantity of air with a fingerApplications range: airbrush, model, paint ( car, bicycle, bike, etc. ), airbrush tattoos, nail design and much more.

Features:

Double-action Trigger Air-paint Control. Easy to handle. Light weight die cast for strong power.Dual action trigger design allows users to determine the quantity of air and fluid released.Provides superb atomization & incredible control.

Product parameters

• Nozzle Dia：Airbrush on 0.2, parts 0.3 and 0.5
• Standard Nozzle Dia.: 0.2mm
• Cup Capacity: 9cc
• Working Pressure:15-50psi
• N.W./G.W.: 277g/349g
• Double-action Trigger Air-paint Control

Before use to airbrush debugging to the best state, as follows:

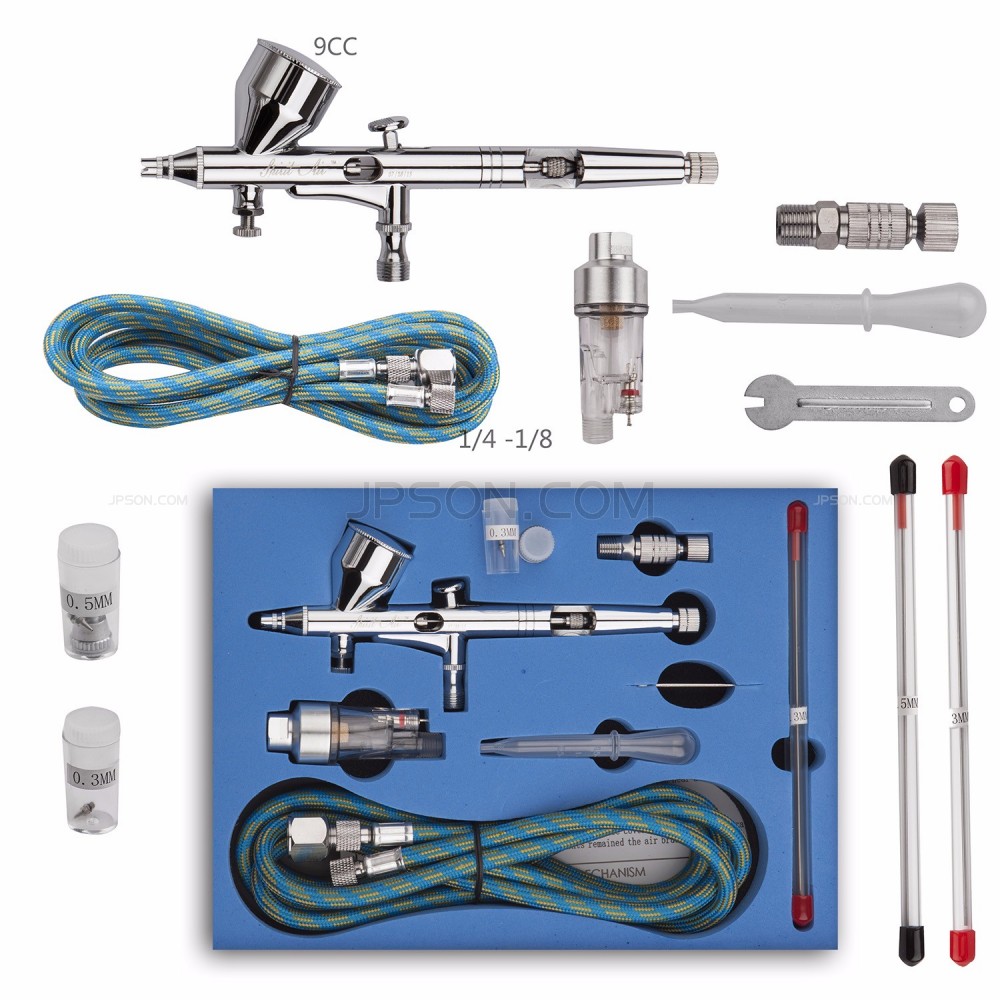

Package Includes:

• 1 x Airbrush

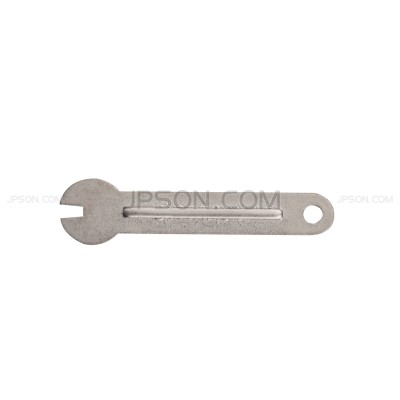

• 1 x Nozzle Wrench

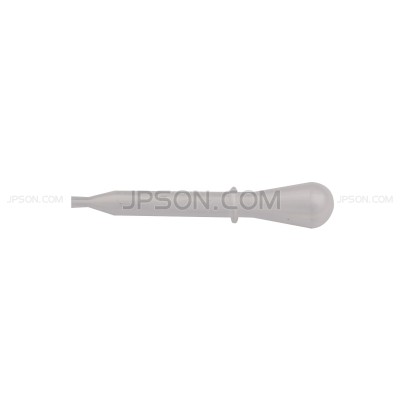

• 1 x Eye Dropper
• 1 x Instruction
• 1 x 0.3mm nozzle
• 1 x 0.5mm nozzle
• 1 x 0.5mm nezzle cap
• 1 x 0.3mm jet needle
• 1 x 0.5mm jet needle

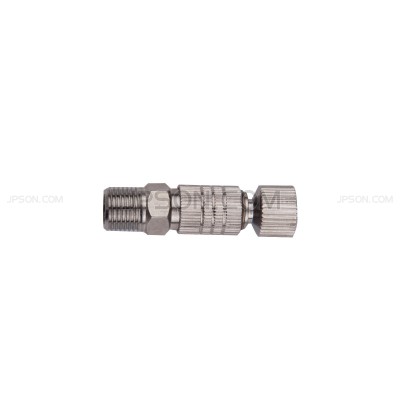

• 1 x Fast joint

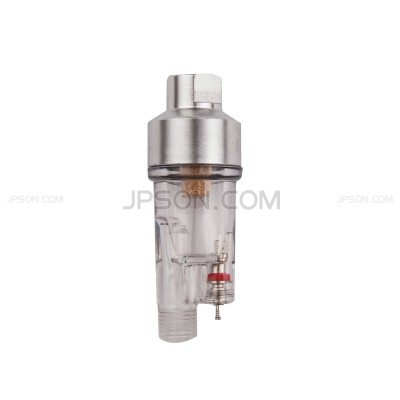

• 1 x Oil / water separator
• 1 x Air hose

Kindly Note:

Please receive airbrush after debugging to the best state, and then use a clean water test, atomization is normal, you can use.

Please use the stability, if dropped on the ground, may affect the use effect, or damage.

After use, please clean the airbrush, avoid clogging, effect the next time you normally use.

In order to protect the item well, a professional person to change needle and nozzle will be recommend.

To prolong your airbrush gun’s life span, please clean your gun in a proper way:It will be better to clean with water thinner like Alcohol after water paint. oil paint should be cleaned with oil thinner like ethyl acetate.

Q&A:

1.  Problems：Paint nozzle leak or abnormal condition of spray.

Possible reason:  The needle is bent or distorted.

Solutions:  change accessories/parts

Possible reason:  Poor connection of nozzle and needle

Solutions: Open the Standard-Handle Adjusting, loosen the needle chucking net, then use the needle touch the nozzle back and forth; screw tightly the needle chucking net.

2.  Problems：Could not spray or bad atomization

Possible reason:  nozzle clogged

Solutions:  clean the nozzle by solvent

Possible reason:  the needle chucking net is loose

Solutions: Open the Standard-Handle Adjusting, loosen the needle chucking net; pull out the needle and put it back,repeat this action a few times ;screw tightly the needle chucking net.

Possible reason:  operation button doesn't work

Solutions: Open the Standard-Handle Adjusting, loosen the needle chucking net; pull out the needle and put it back,repeat this action a few times ;screw tightly the needle chucking net.

APPLICATIONS

Commercial arts、illustrations、photo retouching、hobby and crafts.

HOW TO SPRAY

1、Fill fluid in the cup after thinning appropriately.

2、Hold the airbrush lightly in you hand.

3、By pressing the main lever,a stream of air emerges.Then draw it backward gradually for Color atomization.

4、The spray pattern is in accordance with the distance between a work surface and a air brush.

5、For fine line spray,remove the needle cover and hold the air brush near a work surface.

MAINTENANCE

1、Empty the fluid cup and wash with water or solvent by a brush.

2、Refill cup with water or solvent,then block the needle cover with a finger and spray.The air flows backward into nozzle to clean the paints remained the air brush.
