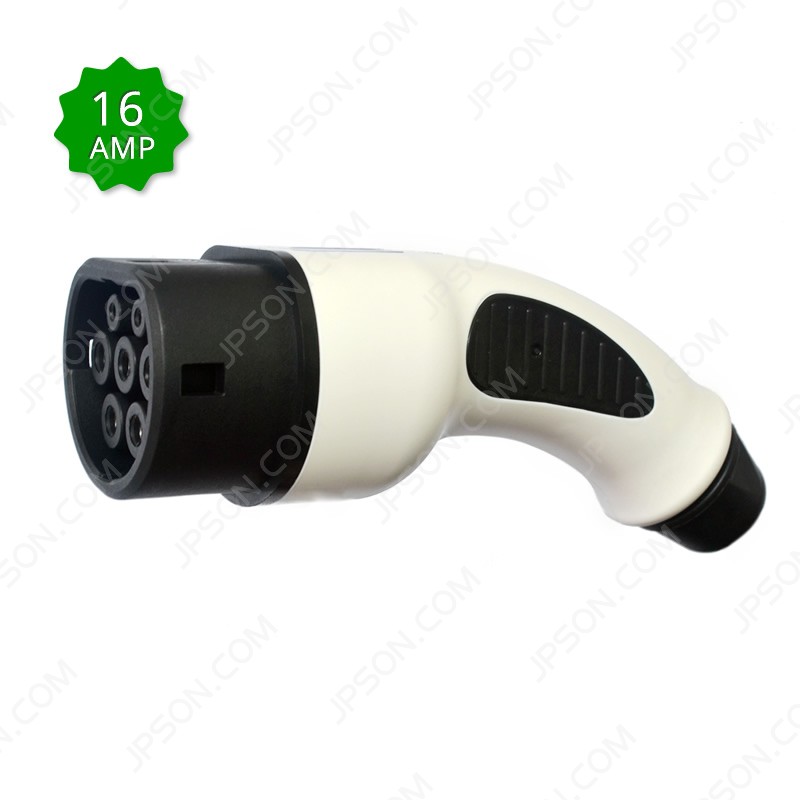

IEC 62196-2 Type 2 Plug Female 16A for EV Charging
- Unit Price
-
US $76 / Piece
US $86
- Cable Length
- No Cord 3m(single phase) 3m(3 phase) 5m(single phase) 5m(3 phase) No Cord(3 phase)
- Quantity
- In stock
- Shipping Cost
- Free Shipping to United States via Register Airmail
-
Full Refund
Not receive your order
Items not as described
Secured by SSL
Pay by Paypal(credit card)
Other People Also Bought
62196-2 Type 2 Male Socket/Inlet 16A for EV Charging
US $75
-
62196-2 Type 2 Male Plug 16A for EV Charging
US $65
-
62196-2 Male Inlet/Socket 16A single phase with 1.5m Cable for EV Charging
US $85
-
62196-2 Type 2 Socket/Outlet Female 32A 3 Point Fixing for EV Charging
US $75
-
62196-2 Type 2 Socket/Inlet Male 32A for EV Charging
US $75
-
IEC 62196-2 Type 2 Plug Female 32A for EV Charging
US $76
Specifications
- Rated Current: 16A
- Model: DSIEC2e-EV16P
Overview
IEC 62196-2(Type 2) Female Plug/Connector (EV Side) 16Amp for Electric Vehicle Charging
Visit our: Type 2 Plug Female 32A
Work for:Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf
- Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
- Nice shape and easy to use, protection class IP54(in mated conditions)

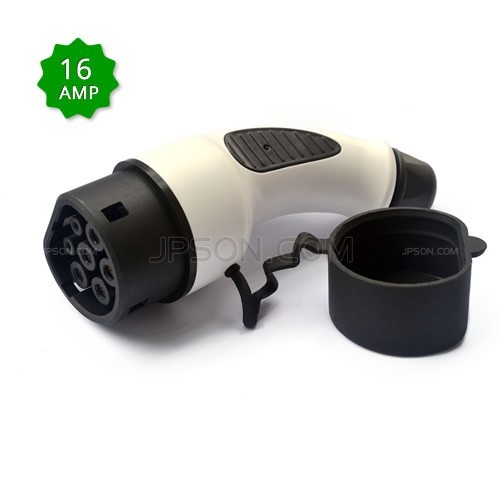

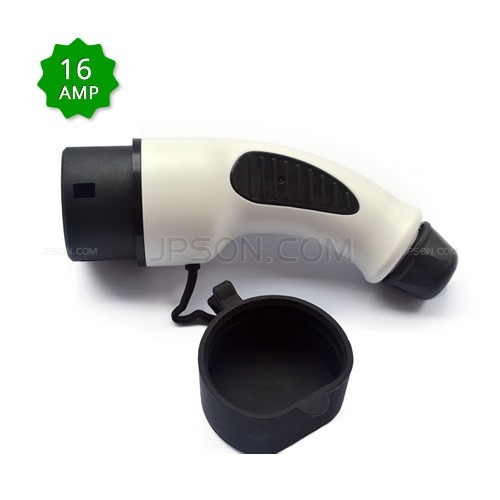

- Rubber cap included
Parameters
- Model: DSIEC2e-EV16P-NC
- Reted current: 16A
- Working voltage: 240/415V AC
- Insulation resistance: > 1000M Ω
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5m Ω Max
- Vibration resistance: Meet JDQ 53.3 requirements
- Working temperature: -30 ° C ~ + 50° C
Materials
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver or nickel plating
- Sealing gasket: rubber or silicon rubber

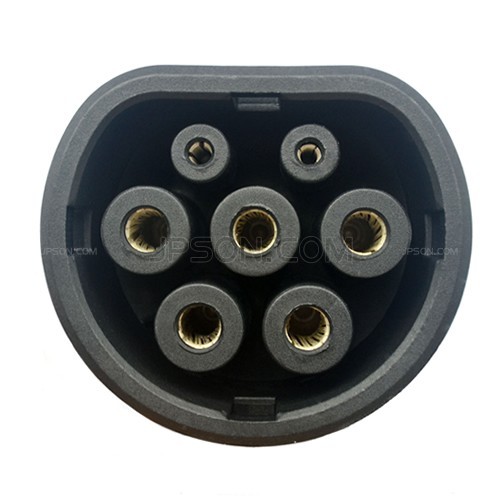

Insert arrangements and functional defination
| Mark | Functional defination |
|---|---|
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3- (L3) | AC power |
| 4-(N) | Netural |
| 5-(PE) | PE |
| 6-(CP) | Control confirmation |
| 7-(PP) | Connection confirmation |
Modle selection and the standard wiring
| Model | Number of inserts | Cable Spec. | Remark |
|---|---|---|---|
| DSIEC2b-EV16P | 7 | 3*2.5mm2+2*0.5mm2 |
The length of the cable can be customized |
| DSIEC2e-EV16P | 7 | 3*2.5mm2+2*0.5mm2 | |
| DSIEC2b-EV32P | 7 | 3*6mm2+2*0.5mm2 | |
| DSIEC2e-EV32P | 7 | 3*6mm2+2*0.5mm2 |
