IEC 62196-2 Type 2 Plug Male 32A for EV Charging

Specifications

• Rated Current: 32A
• Model: DSIEC2b-EV32P

Overview

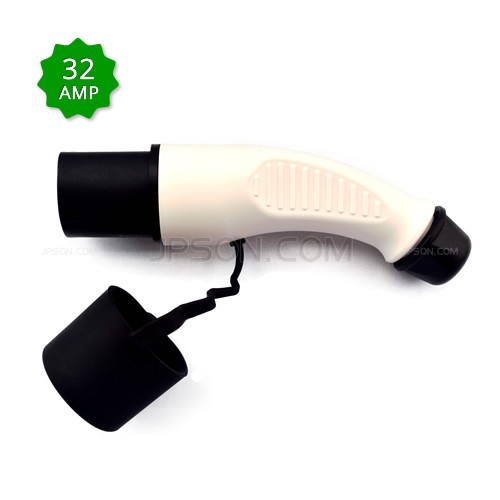

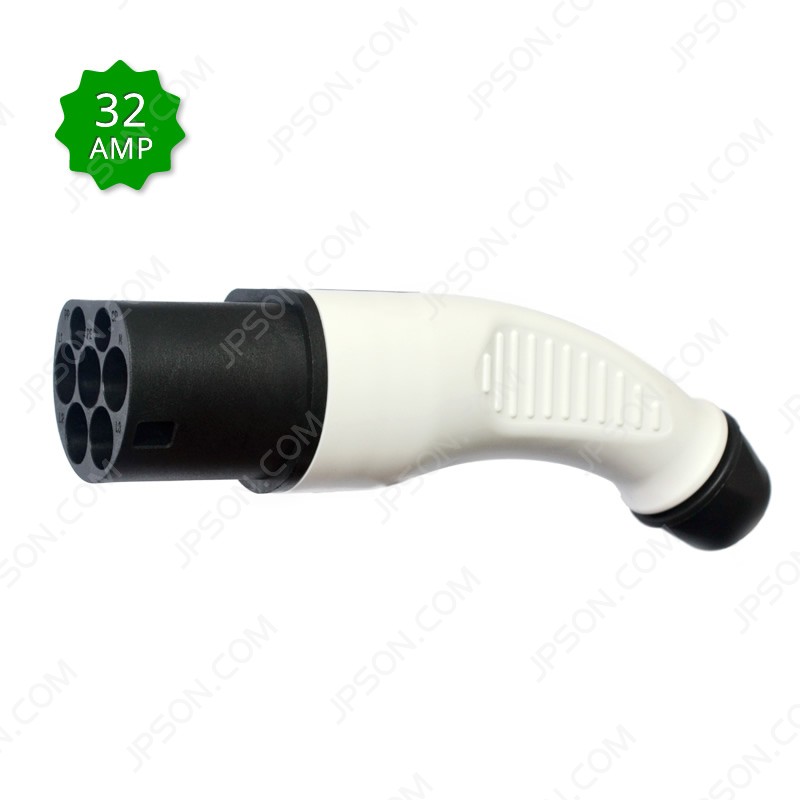

IEC 62196-2(Type 2) Plug/Connector Male(Charging Station Side) 32A for Electric Vehicle(EV) Charging

Visit our: Type2 Plug Male 16A

Work for most of EV cars

• Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
• Nice shape and easy to use, protection class IP54(in mated conditions)

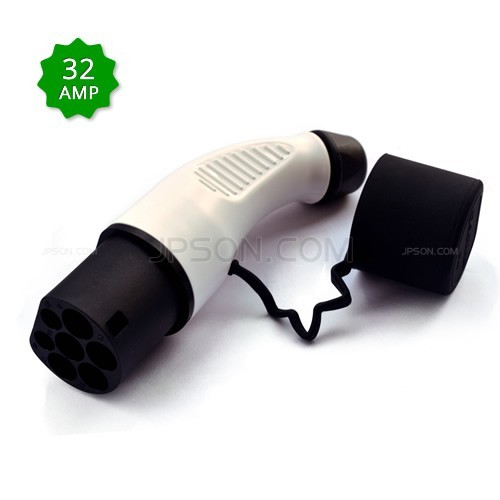

• Rubber cap included

Parameters

• Model: DSIEC-EV32P-NC
• Rated current: 32A
• Working voltage: 240/415V AC
• Insulation resistance: > 1000M Ω
• Terminal temperature rise: <50K
• Withstand voltage: 2000V
• Contact impedance: 0.5m Ω Max
• Vibration resistance: Meet JDQ 53.3 requirements
• Working temperature: -30 ° C ~ + 50° C

Materials

• Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
• Contact Pin: Copper alloy, silver or nickel plating
• Sealing gasket: rubber or silicon rubber

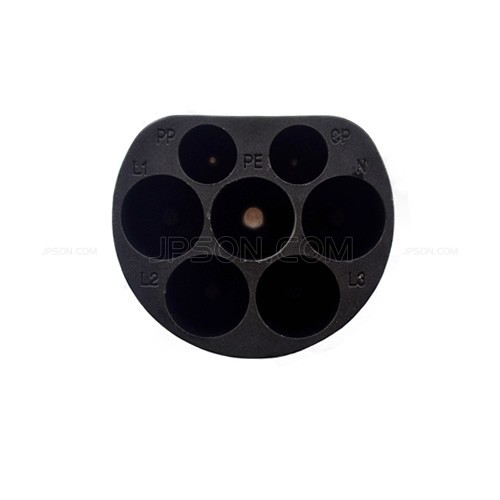

Insert arrangements and functional definition

Mark	Functional definition
1-(L1)	AC power
2-(L2)	AC power
3- (L3)	AC power
4-(N)	Neutral
5-(PE)	PE
6-(CP)	Control confirmation
7-(PP)	Connection confirmation

Model selection and the standard wiring

Model	Number of inserts	Cable Spec.	Remark
DSIEC2b-EV16P	7	3*2.5mm2+2*0.5mm2	The length of the cable can be customized
DSIEC2e-EV16P	7	3*2.5mm2+2*0.5mm2
DSIEC2b-EV32P3	7	3*6mm2+2*0.5mm2
DSIEC2e-EV32P3	7	3*6mm2+2*0.5mm2
