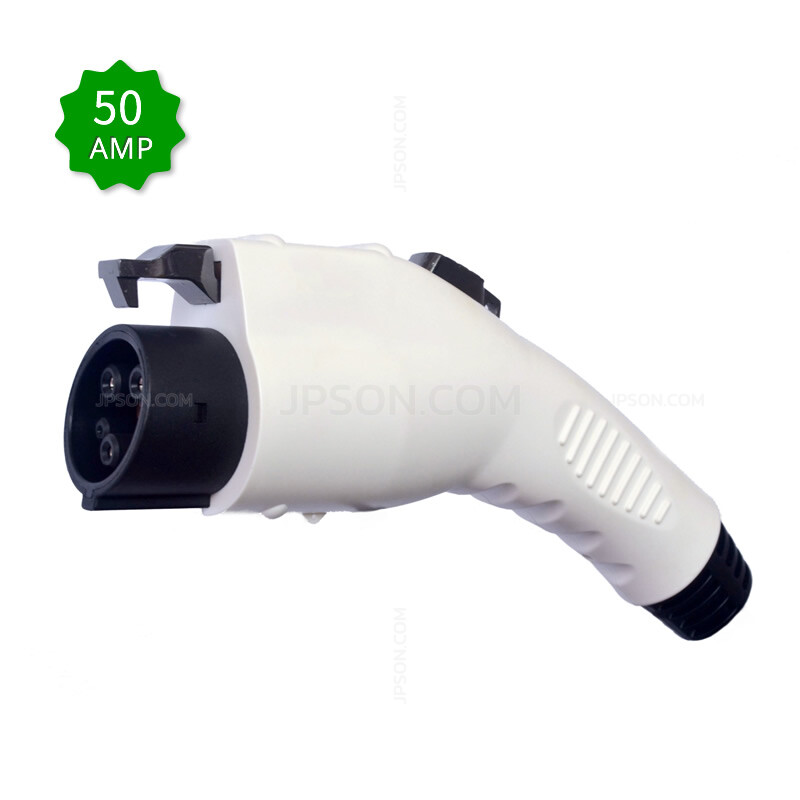

SAE J1772 Plug/Connector 50A for EV Charging
- Unit Price
-
US $72 / Piece
US $80
- Cable Length
- No Cable
- Quantity
- In stock
- Shipping Cost
- Free Shipping to United States via Register Airmail
-
Full Refund
Not receive your order
Items not as described
Secured by SSL
Pay by Paypal(credit card)
Other People Also Bought
Overview
SAE J1772(Type1) Plug/Connector 50A Level2 for Electric Vehicle Charging with 0m,3m,5m Cord
Work for: Nissan LEAF, Prius, Volt, Chevrolet Volt, Tesla Model S and other Electric Cars.
Click to visit: J1772 Plug V2 32A, J1772 Plug 16A
- Cord length: Free End, 3m(9.8ft), 5m(16.4ft), Rubber cap included.
- Meet SAE J1772 2009 (Type 1) North American standard, UL Rated.
- Nice shape and easy to use, protection class IP54(in mated conditions).
- Apply for most of American EV Cars, J1772 Adapter Box or Charger/Home Charging Station.
Parameters
- Model: ;DSI-EV50P-NC
- Rated current: 50Amp
- Working voltage: 120 ~ 240V AC
- Cable Spec: TUV Rated 3*6mm2 + 2*0.5mm2
- Insulation resistance: > 1000M Ω
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact impedance: 0.5m Ω Max
- Vibration resistance: Meet JDQ 53.3 requirements
- Working temperature: -30 ° C ~ + 50° C
Materials
- Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
- Contact Pin: Copper alloy, silver or nickel plating
- Sealing gasket: rubber or silicon rubber
Insert Arrangements and functional definition
- L1 -> Live wire
- L2/N -> Neutral wire
- Equipment Ground -> PE
- Control Pilot -> Control Pilot
- Proximity Detection -> Proximity Detection
Cable Specification
40A/50A: 2x8AWG+1X10AWG+1X16AWG
Structure Drawing
Related Product: J1772 holster, J1772 Inlet, J1772 holder, J1772 Charger
